Product Information:
| Features and Specifications: |
-
B-SURE™ SWR System is manufactured strictly conforming to the relevant environment friendly standard
-
B-SURE™ SWR System comes with a full product range, excellent service support & wide distribution network
-
B-SURE™ SWR System has immunity to corrosion and resistance to all types of chemicals used in detergents and disinfectants.
-
B-SURE™ SWR System is a result of 30 years experience in Polymer processing at JAINS.
-

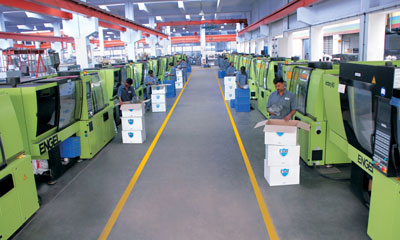

B-SURE™ SWR System is yet another superior piping system from JAINS, where 2,00,000 M.T. of various polymers are extruded and injection moulded annually
B-SURE™ SWR System is ably supported by our well spread out dealer network.
|
|
-
Modern & Smart.
-
Easy to install.
-
Economical.
-
UV stabilized to ensure lifetime endurance.
-
Specially compounded to withstand rugged outdoor installation .
Smooth finish to ensure non choking system. Durable for hot waste water disposal. Maintenance Free
|
Product Specification |
SWR Pipes
TYPE A - Used for Ventilation & Rain-Water System
TYPE B - Used for Soil & Waste Discharge System |
|
| Nominal Diameter |
Mean Outside Diameter |
Type A |
Type B |
| Wall Thickness |
Wall Thickness |
| mm |
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
| 75.0 |
75 |
75.3 |
1.8 |
2.2 |
3.2 |
3.8 |
| 90.0 |
90 |
90.3 |
1.9 |
2.3 |
3.2 |
3.8 |
| 110.0 |
110 |
110.4 |
2.2 |
2.7 |
3.2 |
3.8 |
| 160.0 |
160 |
160.5 |
3.2 |
3.8 |
4.0 |
4.6 |
|
Test Parameter as per IS:13592 |
| S.No. |
Parameter |
Value |
| 1. |
Impact Strength |
TIR Max. 10% |
| 2. |
Tensile Strength |
Min. 45 MPa |
| 3. |
Stress Relief Test |
No signs of Blisters & Crack |
| 4. |
Reversion Test |
Max. 5% |
| 5. |
Vicat Softening Temp |
Min 79ºC |
| 6. |
Exposure to Sunlight |
After 1600 hrs shall not show any difference in color or physical appearance |
| 7. |
Resistance to H2SO4 |
Neither increase by > 0.32 g nor decrease by > 0.13 g |
| 8. |
Axial Shrinkage |
Max. 2% |
| 9. |
Elongation |
Min. 80% |
| 10. |
Water Tightness of Joint |
No leakage from joints at 0.05 MPa |
* All pipes under this standard are available (40mm to 160 mm OD). |
|
