Features and Specifications:
| Applications: |
-
Manufactured from high quality PVC, safe for potable water.
-
An innovative locking arrangement hold the joint intact against tensile load coming on the joints and the external ribs take care of torsion forces (i.e. the torque developed at the start and stop of pump).
-
Patent pending.
-
Light in weight, easy to handle and transport.
-
Fast and easy to assemble and disassemble.
-
Fast lowering and pulling of pumps, no wait for any joint setting time.
-
No effect on installation or disassembly due to extreme weather conditions.
-
Immediate pump testing.
-
Long life as PVC is totally chemical and corrosion resistant.
Low installation costs, no wrenches or threading tools required. Efficient pumping due to low friction loss resulting in energy saving. Smooth inner walls, no scale build up. Conforms to or exceeds the performance requirement of ASTM D 1785 standard specifications for PVC Pipes.
|
Most suitable for use as submersible column pipe. -
Suitable for use as pumping mains.
-
Suitable for use as shiftable pumping system.
|
Range |
1.5” to 8” dia. Class: Sch-80 & Sch-120. |
|
Technical Specifications
As per ASTM D 1785 - Schedule 80 pipe |
| Nominal Diameter |
Outside Diameter |
Minimum Wall Thickness |
Outside dia. over socket |
Maximum depth of installation |
Maximum string weight * |
Maximum joint strength |
Maximum Pump Capacity |
Maximum Pump Pressure |
Maximum Pump Discharge |
| inch |
inch |
mm |
mm |
mm |
m |
feet |
kg |
lbs |
kg |
lbs |
H.P. |
kg/cm² |
psi |
lpm |
| 1.5" |
1.894" |
48 |
5.08 |
63 |
145 |
475 |
550 |
1210 |
860 |
1892 |
15 |
29.75 |
423 |
109 |
| 2" |
2.369" |
60 |
5.54 |
81 |
145 |
475 |
740 |
1628 |
1100 |
2420 |
20 |
25.32 |
360 |
182 |
| 2.5" |
2.868" |
73 |
7.01 |
95 |
145 |
475 |
1050 |
2310 |
1540 |
3388 |
30 |
25.32 |
360 |
261 |
| 3" |
3.492" |
88 |
7.62 |
114 |
145 |
475 |
1450 |
3190 |
2260 |
4972 |
30 |
23.42 |
333 |
407 |
| 4" |
4.491" |
114 |
8.56 |
141 |
145 |
475 |
2180 |
4796 |
3650 |
8030 |
50 |
20.25 |
288 |
709 |
| 5" |
5.553" |
141 |
9.52 |
168 |
145 |
475 |
3180 |
6996 |
4690 |
10318 |
75 |
18.35 |
261 |
1123 |
| 6" |
6.614" |
168 |
10.97 |
200 |
145 |
475 |
4460 |
9812 |
7200 |
15840 |
100 |
17.72 |
252 |
1609 |
| 8" |
8.610" |
218 |
12.70 |
250 |
145 |
475 |
7070 |
15554 |
10200 |
22440 |
125 |
15.82 |
225 |
2818 |
Note: *Considering discharge pressure of 0.3 kg/cm² ( 4.26 psi) at well head. |
As per ASTM D 1785 - Schedule 120 pipe |
| Nominal Diameter |
Outside Diameter |
Minimum Wall Thickness |
Outside dia. over socket |
Maximum depth of installation |
Maximum string weight * |
Maximum joint strength |
Maximum Pump Capacity |
Maximum Pump Pressure |
Maximum Pump Discharge |
| inch |
inch |
mm |
mm |
mm |
m |
feet |
kg |
lbs |
kg |
lbs |
H.P. |
kg/cm² |
psi |
lpm |
| 1.5" |
1.894" |
48 |
5.72 |
63 |
230 |
750 |
825 |
1815 |
1030 |
2266 |
15 |
34.18 |
486 |
101 |
| 2" |
2.369" |
60 |
6.35 |
81 |
230 |
750 |
1125 |
2475 |
1390 |
3058 |
20 |
29.75 |
423 |
170 |
| 2.5" |
2.868" |
73 |
7.62 |
95 |
230 |
750 |
1600 |
3520 |
1790 |
3938 |
30 |
29.75 |
423 |
250 |
| 3" |
3.492" |
88 |
8.89 |
114 |
230 |
750 |
2240 |
4928 |
2900 |
6380 |
30 |
27.85 |
396 |
379 |
| 4" |
4.491" |
114 |
11.10 |
141 |
230 |
750 |
3420 |
7524 |
4660 |
10252 |
50 |
27.22 |
387 |
637 |
| 5" |
5.553" |
141 |
12.70 |
168 |
230 |
750 |
5000 |
11000 |
7230 |
15906 |
75 |
25.32 |
360 |
1009 |
| 6" |
6.614" |
168 |
14.27 |
200 |
230 |
750 |
7000 |
15400 |
8600 |
18920 |
100 |
23.42 |
333 |
1467 |
| 8" |
8.610" |
218 |
18.24 |
255 |
230 |
750 |
11460 |
25212 |
14090 |
30998 |
125 |
24.05 |
342 |
2504 |
Note: *Considering discharge pressure of 0.3 kg/cm² ( 4.26 psi) at well head. |
|

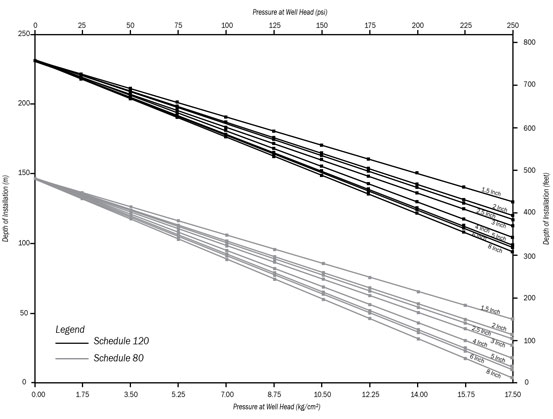

Quick Selection Chart for Jain Sure-Loc Plus™
Ordering Specifications :
Example : EZCL048080CDL00300 - This code represents Sure-Loc Plus™ Column Pipe with nominal diameter of 48mm (1.5”) scheduled 80 pipe manufactured as per company standard with deep blue color and 3 m. length.
For Fittings : Click to : Jain Sure-Loc Column Pipe Fitting
|
|
|
