Quick - Connect ® PE Pipes

Applications:

  • Suitable for portable impact overhead and floppy sprinkler systems.

  • Can be used for portable water supply distribution pipelines.

  • Can be used for temporary piping systems.

Ordering Specifications

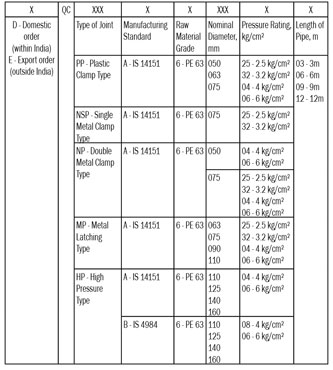

Example: DQCMPA60633206 - This code represents, Quick Connect Pipe with metal latch type joint, 63mm nominal diameter, pressure rating of 3.2 kg/cm² manufactured as per IS 14151, PE 63 grade material and length of pipe is 6m.
Note: For wall thicknesses as per IS 4984, please refer HDPE Pipe page in Pipes and Fittings section.

Features and Specifications:

  • Manufactured from virgin high quality HDPE raw material.

  • Conforming to IS-14151, IS-4984, ASTM D3035 and ISO 4427.

  • Specially designed quick connect® coupler ensures speedy joint and easy detachment.

  • All weather installation or disassembly suitable for extreme site conditions.

  • Nitrile seal gives pressure tight, leak proof joints.

  • Low installation cost.

  • Low frictional losses.

  • Long System Life - resistance to impact, chemicals & salt in water.

  • Available in standard length of 6 m. Other pipe length can be supplied on demand.

Technical Specifications

Outside Dia. mm Minimum Wall Thickness (mm)
Pressure rating (kg/cm²)
mm 2.5 3.2 4.0 6.0 8.0 10.0
50 - - 2.00 2.90 4.60 5.50
63 - 2.00 2.50 3.80 5.80 7.00
75 2.00 2.50 3.00 4.50 6.90 8.40
90 2.20 2.90 3.50 5.30 8.20 10.00
110 2.70 3.40 4.20 6.50 10.00 12.30
140 3.10 3.80 4.80 7.40 11.40 13.90
140 3.50 4.30 5.40 8.30 12.80 15.60
160 3.90 4.90 6.20 9.40 14.60 17.80

Related Links :

Quick-Connect®Joints

We have perfected three joints according to the requirement of sizes. These joints are designed to withstand the tensile pull that will be acting on the joint when the pipeline is under pressure.

Quick-Connect® Fittings - Plastic Clamp Joints

Used for installation of portable overhead / floppy sprinkler irrigation system.

Quick-Connect® Fittings - Single Metal Clamp Joints

Manufactured from virgin HDPE material.Plated single metallic clamp facilitates fast assembling and disassembling.

Quick-Connect® Fittings - Double Metal Clamp Joints

Manufactured from virgin HDPE material.Plated double metallic clamp provides all round grip on pipe to prevent leakage and snapping off.

Quick-Connect® Fittings - Metal Latch Joints

Manufactured from virgin HDPE material.Plated metallic clamps designed for easy and fast installation.

Quick-Connect® Fittings - High Pressure

Manufactured from virgin HDPE material.Heavy duty zinc plated clamps and lever.Lever hook to clamp on the socket and allow for high pressure joint.

PE Hand Moulded Fittings

PE Bends (Plain Ended), Equal Tees (Plain Ended), Equal Tee with Flanged Ends, Unequal Tee with Flanged Ends (Single / Multistage), Moulded Flanges (Slip-on), Flanges with Weld Neck, Sandwich Flanges, Blind Flanges, MS Slip-on Flanges, Single / Multi Stage Reducers (Plain Ended), Pipe End (Long Neck), End Cap, Duck Foot Bend

HDPE Pipes Jointing Connections

JAIN HDPE piping systems like - butt fusion, electro-fusion, which are permanent joints and detachable joints such as flanged joints, self restrained sure-loc joints, Quick-Connect® joints and compression joints
