PVC Free Foam - (Ex-celŽ FF)
|
|
ExcelŽ PVC Free Foam Sheet is chemically foamed, rigid, light weight extruded sheet with fine & homogenous closed cell structure having a smooth matt surface finish on both sides.
|
Main Features
- Easy to Fabricate
- Light Weight
- Outstanding Printability
- Fine Cell Structure
- Low Flammability
- Non Warping
- Non Corrosive
- Non Toxic
- High Impact Strength
|
Suitable For
- Cuttting
- Sawing
- Shearing
- Punching
- Drilling
- Milling
- Rivetting
- Screwing
- Painting
- Printing
- Photo Mounting
- Bending
- Engraving
|
Applications
- Advertising Signs
- Displays
- Exhibition Stands
- Point of Sale
- Interior Designs
- Bathroom Fittings
- Models & Prototypes
- Panels & Cabins
- Embossing & Engraving
- Thermoforming
- Lumber
- Trimboard
|
|
Product Range |
| Colour Code |
Colour |
Thickness |
Std. Width |
Std. Length |
| mm |
inch |
mm |
inch |
| J1018 |
Bright White |
2 to 10 mm |
1000 |
39 |
2000 |
79 |
| 1220 |
48 |
2440 |
96 |
| 1560 |
61 |
3050 |
120 |
| 2050 |
80 |
3050 |
120 |
12 to 25 mm*
|
1220
|
48
|
2440 |
96 |
| 3050 |
120 |
| 4880 |
192 |
| 5490 |
216 |
| 6100 |
240 |
* One side embossed pattern also available.
|
Technical Properties |
| Properties |
Test |
Unit |
Value |
Physical |
| Density |
DIN 53479 |
g/cc |
0.55 - 0.70 |
| Hardness |
DIN 53505 |
Shore D |
≥ 42 |
| Water Absorption |
DIN 53495 |
% |
≤ 1.0 |
Mechanical |
| Tensile Strength* |
DIN 53455 |
MPa |
≥ 15 |
| Elongation at Break** |
DIN 53455 |
% |
≥ 15 |
| Modulus of Elasticity |
DIN 53457 |
MPa |
900 - 1500 |
| Izod Impact Strength* |
ASTM D256 |
KJ/M² |
≥ 9.0 |
| Charpy Impact Strength |
DIN 53253 |
KJ/M² |
≥ 15 |
| Flexural Strength |
DIN 53452 |
MPa |
> 32 |
| Compressive Strength at 10% Deformation |
DIN 53421 |
MPa |
> 6.5 |
Electrical |
| Surface Resistivity |
ASTM D 257 |
Ω |
> 1 x 1014 |
| Volume Resistivity |
ASTM D 257 |
Ω-cm |
> 1 x 1015 |
| Dielectric Constant at 1 MHZ |
ASTM D 150 |
- |
1.56 |
| Dielectric strength |
DIN 53481 |
KV/cm |
≥ 90 |
Thermal |
| Vicat Softening Temperature |
DIN 53460 |
ºC |
≥ 73 |
| Heat Deflection Temperature @ 1.8 MPa |
DIN 53461 |
ºC |
58 |
| Coefficient of Linear Expansion |
DIN 53752 |
mm/m ºC |
0.08 |
| Thermal Conductivity |
DIN 52616 |
W/m K |
0.05 - 0.07 |
Flammability |
| UK |
BS 476 Part 7 |
|
Class 1 Y |
| France |
NFP 92-501 |
|
Class M1 |
| USA |
UL 94 |
|
V 0 |
* 15 MPa for free foam sheet with typical density 0.7 g/cc
* 13 MPa for free foam sheet with typical density 0.55 g/cc |
** 15% for free foam sheet with typical density 0.7 g/cc
** 13% for free foam sheet with typical density 0.55 g/cc |
|

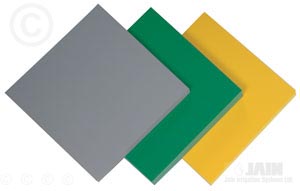

(The Colour shades are only representative) Colours are available in 3,5 & 6 mm thickness.
Black and Grey colours are also available from 10 to 25 mm thickness. |
|
