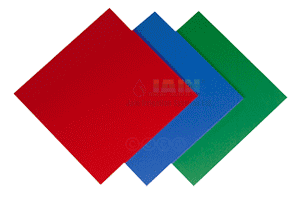

PVC Rigid Sheet

Ex-cel® PVC Rigid sheet is extruded from Environmental friendly compound having smooth & glossy surface finish.

Main Features

  • Smooth & Gloss
  • Easy to Fabricate
  • Good Printability
  • Low Flammability
  • Non Corrosive
  • Non Toxic
  • High Impact Strength
  • Good Sound & Thermal Insulation
  • Self Extinguishing
  • Resistance to Oscillation & Vibration

Suitable For

  • Cutting
  • Sawing
  • Shearing
  • Punching
  • Drilling
  • Milling
  • Rivetting
  • Welding
  • Painting
  • Embossing
  • Photo Mounting
  • Engraving

Applications

  • Advertising Signs
  • Displays
  • Walls and Partitions
  • Bathroom Fittings
  • Models & Prototypes
  • Panels & Cabin
  • Embossing & Engraving
  • Point of sale
  • Switch Board
  • Ventilation Duct

Product Range
Code Colour Thickness Std. Width Std. Length
mm inch mm inch
J7011
J7010

J7016
J7032		 Grey


White
____		 2 to 12.7mm 1000


1220
1500		 39


48
59		 2000


2440
3050		 79


96
120

Properties are based on 3 mm sheet


Technical Properties
Properties Test Unit Value

Physical
Density DIN53479 g/cc 1.40 to 1.46
Hardness DIN53505 Shore D 80
Hardness Water Absorption DIN53490 % 0.1

Mechanical
Tensile Strength DIN53455 MPa ≥ 45
Elongation at Break DIN53455 % ≥ 60
E Modulus DIN 53457 MPa 2500 - 3000
Charpy Impact Strength DIN 53253 KJ/M² ≥ 7.5
Izod Impact Strength ASTM D256 KJ/M² No Break
Charpy Impact Strength DIN 53253 KJ/M² > 7.5
Flexural Strength DIN 53452 MPa 80
Drop Impact Strength
(Height : 1.8 m & mass : 0.3 kg x thickness) 		IS 6307 -- Pass
Compressive Strength at 10% Deformation DIN 53421 MPa 60

Thermal
Vicat (B/50) DIN 53460 ºC 80
Heat Deflection Temperature @ 1.8 MPa DIN 53461 ºC 65
Coefficient of linear Thermal Expansion ASTM D 696 ºC-1 7.07 x 10-5

Electrical
Surface Resistivity ASTM D 257 W 2.8 X 10 16
Volume Resistivity ASTM D 257 W-cm 8.1 x 10 15
Dielectric Constant at 1 MHZ ASTM D 150 - 3.13
Dielectric Strength DIN IEC 243 KV/mm 16.8
Dimensional Change at 120 ± 2ºC BS 3757 % ≤ 15

Flammability
UK BS 476 Part 7   Class 1 Y
USA UL 94   V 0

** 3 mm
