Features and Specifications:
-
Light weight, compact and robust design.
-
High impact heavy-duty plastic materials provide resistance to corrosion, chemicals and UV radiation.
-
Full Circle Plastic Impact Sprinklers, 3/4” male (5035), 1” female (5035-G).
|
-
High distribution uniformity.
-
Colour-coded bayonet nozzle for easy service.
-
Integrated stream-straightening vane for maximum range.
|
Applications:
|
Performance Table - 5035 (3/4")
| Nozzle |
Pressure |
Discharge |
Diameter |
Pressure (mm/h) / spacing (m) |
| mm |
kg/cm² |
m³/hr |
m |
12 x 15 |
12 x 18 |
18 x 18 |
20 x 20 |
3.5 x 2.5
Blue |
3.0 |
1.160 |
26.5 |
6.4 |
5.4 |
3.6 |
2.9 |
| 4.0 |
1.330 |
27.5 |
7.4 |
6.2 |
4.1 |
3.3 |
| 5.0 |
1.470 |
27.5 |
8.2 |
6.8 |
4.5 |
3.7 |
4.0 x 2.5
Black
|
3.0 |
1.410 |
28.0 |
7.8 |
6.5 |
4.4 |
3.5 |
| 4.0 |
1.620 |
29.0 |
9.0 |
7.5 |
5.0 |
4.1 |
| 5.0 |
1.800 |
29.0 |
10.0 |
8.3 |
5.5 |
4.5 |
4.5 x 2.5
Brown
|
3.0 |
1.640 |
28.5 |
9.1 |
7.6 |
5.1 |
4.1 |
| 4.0 |
1.900 |
30.0 |
10.6 |
8.8 |
5.9 |
4.8 |
| 5.0 |
2.100 |
32.0 |
11.7 |
9.7 |
6.5 |
5.3 |
5.0 x 2.5*
Purple
|
3.0 |
1.950 |
30.0 |
10.8 |
9.0 |
6.0 |
4.9 |
| 4.0 |
2.250 |
33.5 |
12.5 |
10.4 |
6.9 |
5.6 |
| 5.0 |
2.550 |
33.5 |
14.2 |
11.8 |
7.8 |
6.4 |
5.0 x 2.5*
Orange |
3.0 |
2.300 |
32.0 |
12.8 |
10.6 |
7.1 |
5.8 |
| 4.0 |
2.650 |
34.5 |
14.7 |
12.3 |
8.2 |
6.6 |
| 5.0 |
2.950 |
36.0 |
16.4 |
13.7 |
9.1 |
7.4 |
6.0 x 2.5*
Red |
3.0 |
2.650 |
33.0 |
14.7 |
12.3 |
8.2 |
6.6 |
| 4.0 |
3.100 |
35.5 |
17.2 |
14.4 |
9.6 |
7.8 |
| 5.0 |
3.450 |
36.0 |
19.2 |
16.0 |
10.6 |
8.6 |
* Standard Nozzle |
Performance Table 5035 - G-1"
| Nozzle |
Pressure |
Discharge |
Diameter |
Pressure (mm/h) / spacing (m) |
| mm |
kg/cm² |
m³/hr |
m |
12 x 18 |
18 x 18 |
20 x 20 |
22 x 22 |
6.5 x 2.5
|
3.0 |
3.000 |
34.0 |
13.9 |
9.3 |
7.5 |
6.2 |
| 4.0 |
3.450 |
36.0 |
16.0 |
10.6 |
8.6 |
7.1 |
| 5.0 |
3.850 |
38.0 |
17.8 |
11.9 |
9.6 |
8.0 |
6.5 x 3.2
|
3.0 |
3.200 |
33.5 |
14.8 |
9.9 |
8.0 |
6.6 |
| 4.0 |
3.700 |
36.0 |
17.1 |
11.4 |
9.3 |
7.6 |
| 5.0 |
4.150 |
37.5 |
19.2 |
12.8 |
10.4 |
8.6 |
7.0 x 2.5
|
3.0 |
3.400 |
34.0 |
15.7 |
10.5 |
8.5 |
7.0 |
| 4.0 |
3.900 |
35.5 |
18.1 |
12.0 |
9.8 |
8.1 |
| 5.0 |
4.350 |
36.0 |
20.1 |
13.4 |
10.9 |
9.0 |
| 7.0 x 3.2 |
3.0 |
3.550 |
34.0 |
16.4 |
11.0 |
8.9 |
7.3 |
| 4.0 |
4.100 |
35.5 |
19.0 |
12.7 |
10.3 |
8.5 |
| 5.0 |
4.600 |
36.0 |
21.3 |
14.2 |
11.5 |
9.5 |
Rear nozzle colour : 3.2 mm, orange
Colour code - Distribution uniformity
 |
 |
 |
 |
| CU < 85% |
CU = 85 - 88% |
CU = 88 - 92% |
CU < 85% |
|
Performance Table - 5035 Single Nozzle (3/4")
Nozzle
mm |
Pressure
kg/cm² |
Discharge
m³/h |
Diameter
m |
3.5
Blue |
3.0 |
0.810 |
26.5 |
| 4.0 |
0.930 |
27.5 |
| 5.0 |
1.020 |
28.0 |
4.0
Black |
3.0 |
1.060 |
28.0 |
| 4.0 |
1.220 |
29.0 |
| 5.0 |
1.350 |
29.5 |
4.5
Brown |
3.0 |
1.290 |
28.5 |
| 4.0 |
1.500 |
30.0 |
| 5.0 |
1.650 |
33.0 |
5.0 *
Purple |
3.0 |
1.600 |
30.0 |
| 4.0 |
1.850 |
33.5 |
| 5.0 |
2.100 |
34.0 |
5.5
Orange |
3.0 |
1.950 |
32.0 |
| 4.0 |
2.250 |
34.5 |
| 5.0 |
2.500 |
36.0 |
6.0
Red |
3.0 |
2.300 |
33.0 |
| 4.0 |
2.700 |
35.5 |
| 5.0 |
3.000 |
36.0 |
|
Performance Table 5035-G-1" Single Nozzle
Nozzle
mm |
Pressure
kg/cm² |
Discharge
m³/h |
Diameter
m |
6.5
Gray |
3.0 |
2.700 |
34.0 |
| 4.0 |
3.100 |
36.0 |
| 5.0 |
3.500 |
38.0 |
7.0
Green |
3.0 |
3.300 |
34.0 |
| 4.0 |
3.500 |
36.0 |
| 5.0 |
3.900 |
38.0 |
|

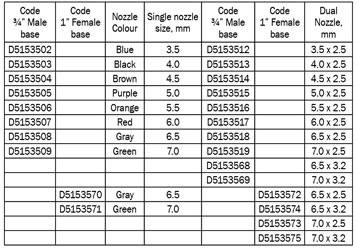

Ordering Specifications
• Rear Nozzle - 2.5mm - Gray; 3.2 mm - Orange
Example: D5153502 - This code represents 5035 sprinkler with blue nozzle of 3.5 mm.
Note: For sales order outside India add ‘E’ instead of ‘D’ in the above mentioned ordering code. e.g. for ordering 5035 sprinkler blue nozzle 3.5 mm change the code as E5153502. |
| |
|
 |
