Trickler Guard™ Poly Filter

Features and Specifications:

• Manufactured from high quality engineering plastic material.

• Trickle Guard™ technology prevents low head drainage.

• Minimum operating pressure is 0.5 kg/cm² (7 psi).

• Shut off pressure 0.2 kg/cm² (3 psi).

• Prevents back flow.

• Acts as anti-siphoning device to avoid suction of the dirt in the drippers.

• UV stabilised.

• No environmental effects.

• Keeps the submain always full of water. Saves pumping energy to fill up the pipeline.

• Stainless steel spring and EPDM seal ensures trickle proof sealing for long period.

• In-built filter for supplying clean water to the drippers / J-Turbo Line®.

• Optional auto flush arrangement available which flushes off the filter at start-up and shut down of irrigation cycle.

• Resistance to most of the fertilizers and chemicals used in agriculture.

• Available in connection options suitable for Polytube, Jain Tough Hose, J-Turbo Line®, Drip Tape and ¾” BSP threaded inlet.

Applications:

• Recommended to use with J-Turbo Line™ for precision irrigation.

• Recommended to use in green house applications.

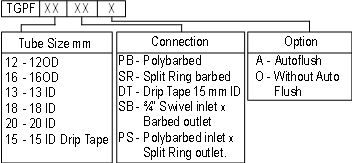

Ordering Specifications:

Example: TGPF16PBA - This code represents Trickle Guard™ - Poly Filter suitable for 16mm OD Polytube having polybarbed connection and with automatic flushing arrangement.
