Quick Coupler Riser Assembly

Features and Specifications:

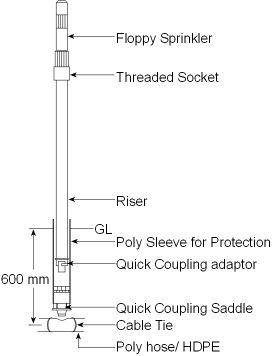

• Factory assembled unit easy to handle, maintain and install, comprising.

1. ¾” Aluminium riser of required length.

2. Female threaded ¾” BSP socket to mount the floppy sprinkler.

3. Quick coupling adaptor & saddle.

4. Two cable ties to tie up quick coupling saddle with HDPE and/or poly hose pipe.

5. Poly sleeve 600 mm long to protect from saddle plugging.

Applications:

• Used for quick removal and reinstallation of floppy sprinkler riser assembly

Ordering Specifications:

Example: QCRA10 - This code represents Quick Coupler Riser Assembly with height of riser 1.0 m.
Note:On request Quick Coupler Riser Assembly can be provided with different riser height
