HDPE Pipes - Jain High Density Polyethylene Pipes

Features and Specifications:

  • Manufactured from virgin pipe grade raw materials (PE80, PE100).

  • Excellent corrosion and chemical resistance. Inert to most acidic and alkaline solutions.

  • High flow characteristics.

  • Light in Weight.

  • Easy to handle & transport.

  • Excellent flexibility combined with strength.

  • Good abrasion resistance.

  • Smooth inner walls minimises frictional losses.

  • Safe for potable water supply.

  • Manufactured as per IS-4984, ISO-4427, DIN8074, ASTM D 3035 and BS-6437 standards in PE-63, PE-80 and PE-100 grades.

  • Manufactured from 20 to 1600 mm sizes at various pressure rating from 2.5 to 16 kg/cm² (35.5 to 227.5 psi).

  • Upto 6" in straight lengths and coils. Higher sizes in standard and other straight lengths only.




Applications:

  • Lift and gravity water supply systems .

  • Micro & sprinkler irrigation systems.

  • Sewerage pumping and effluent disposal systems.

  • Column pipes for submersible pumps.

PE Pipe as per ISO:4427:96

Material Grade PE 63

OD PN 3.2 PN 4 PN 6 PN 6.3 PN 8 PN10 PN12.5 PN16
Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
16.0 16.3 - - - - - - - - - - 2.3 2.8 2.3 2.8 2.3 2.8
20.0 20.3 - - - - - - - - 2.3 2.8 2.3 2.8 2.3 2.8 2.8 3.3
25.0 25.3 - - - - 2.3 2.8 2.3 2.8 2.3 2.8 2.3 2.8 2.8 3.3 3.5 4.1
32.0 32.3 - - - - 2.3 2.8 2.3 2.8 2.4 2.9 2.9 3.4 3.6 4.2 4.4 5.1
40.0 40.4 - - 2.3 2.8 2.3 2.8 2.4 2.9 3.0 3.5 3.7 4.3 4.5 5.2 5.5 6.4
50.0 50.5 - - 2.3 2.8 2.9 3.4 3.0 3.5 3.7 4.3 4.6 5.3 5.6 6.5 6.9 8.0
63.0 63.6 2.3 2.8 2.5 3.0 3.6 4.2 3.8 4.4 4.7 5.5 5.8 6.7 7.1 8.2 8.6 9.9
75.0 75.7 2.3 2.8 2.9 3.4 4.3 5.0 4.5 5.2 5.6 6.5 6.8 7.9 8.4 9.7 10.3 11.9
90.0 90.9 2.8 3.3 3.5 4.1 5.1 6.0 5.4 6.3 6.7 7.8 8.2 9.5 10.1 11.7 12.3 14.2
110.0 111.0 3.4 4.0 4.2 4.9 6.3 7.3 6.6 7.6 8.1 9.4 10.0 11.5 12.3 14.2 15.1 17.4
125.0 126.2 3.9 4.5 4.8 5.6 7.1 8.2 7.4 8.6 9.2 10.6 11.4 13.2 14 16.1 17.1 20.5
140.0 141.3 4.3 5.0 5.4 6.3 8.0 9.2 8.3 9.6 10.3 11.9 12.7 14.7 15.7 18.4 19.2 23.0
160.0 161.5 4.9 5.7 6.2 7.2 9.1 10.5 9.5 11.0 11.8 13.6 14.6 16.8 17.9 21.2 21.9 26.2
180.0 181.7 5.5 6.4 6.9 8.0 10.2 11.8 10.7 12.4 13.3 15.3 16.4 19.6 20.1 24.1 24.6 29.5
200.0 201.8 6.2 7.2 7.7 8.9 11.4 13.2 11.9 13.7 14.7 17.0 18.2 21.8 22.4 26.8 27.4 32.8
225.0 227.1 6.9 8.0 8.6 9.9 12.8 14.8 13.4 15.5 16.6 19.9 20.5 24.5 25.2 30.2 30.8 36.9
250.0 252.3 7.7 8.9 9.6 11.1 14.2 16.4 14.8 17.1 18.4 22.0 22.7 27.2 27.9 33.4 34.2 41.0
280.0 282.6 8.6 10.0 10.7 12.4 15.9 18.3 16.6 19.9 20.6 24.7 25.4 30.4 31.3 37.5 38.3 45.9
315.0 317.9 9.7 11.2 12.1 14.0 17.9 21.4 18.7 22.4 23.2 27.8 28.6 34.3 35.2 42.2 43.1 51.7
355.0 358.2 10.9 12.6 13.6 15.7 20.1 24.2 21.1 25.3 26.1 31.3 32.2 38.6 39.7 47.6 48.5 58.1
400.0 403.6 12.3 14.2 15.3 17.6 22.7 27.3 23.7 28.4 29.4 35.2 36.3 43.5 44.7 53.6 54.7 64.6
450 454.1 13.8 15.9 17.2 20.6 25.5 30.6 26.7 32.0 33.1 39.7 40.9 49.0 50.3 60.2 61.5 71.4
500 504.5 15.3 17.6 19.1 22.9 28.3 33.9 29.7 35.6 36.8 44.1 45.4 54.4 55.8 65.7 - -
560 565.0 17.2 20.6 21.4 25.6 31.7 38.0 33.2 39.8 41.2 49.4 50.8 60.7 - - - -
630 635.7 19.3 23.1 24.1 28.9 35.7 42.8 37.4 44.8 46.3 55.5 57.2 67.1 - - - -
710 716.4 21.8 26.1 27.2 32.6 40.2 48.2 42.1 50.5 52.2 62.1 - - - - - -
800 807.2 24.5 29.3 30.6 36.7 45.3 54.3 47.4 56.8 58.8 68.7 - - - - - -
900 908.1 27.6 33.1 34.4 41.2 51.0 60.9 53.3 63.2 - - - - - - - -
1000 1009 30.6 36.7 38.2 45.8 56.6 66.5 59.3 69.2 - - - - - - - -
1200 1210 36.7 44.0 45.9 55.0 - - - - - - - - - - - -
1400 1410 42.9 51.3 53.5 63.4 - - - - - - - - - - - -
1600 1610 49.0 58.7 61.2 71.1 - - - - - - - - - - - -
Note : Pressure Rating in : Kg/cm²


Material Grade PE 80
OD PN 6 PN 8 PN 10 PN 12.5 PN 16
Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
16.0 16.3 - - - - - - - - 2.3 2.8
20.0 20.3 - - - - - - - - 2.3 2.8
25.0 25.3 - - - - - - 2.3 2.8 2.8 3.3
32.0 32.3 - - - - - - 3.0 3.5 3.6 4.2
40.0 40.4 - - - - - - 3.7 4.3 4.5 5.2
50.0 50.5 - - - - - - 4.6 5.3 5.6 6.5
63.0 63.6 - - - - 4.7 5.5 5.8 6.7 7.1 8.2
75.0 75.7 - - 4.5 5.2 5.6 6.5 6.8 7.9 8.4 9.7
90.0 90.9 4.3 5.0 5.4 6.3 6.7 7.8 8.2 9.5 10.1 11.7
110.0 111.0 5.3 6.1 6.6 7.6 8.1 9.4 10.0 11.5 12.3 14.2
125.0 126.2 6.0 6.9 7.4 8.6 9.2 10.6 11.4 13.2 14.0 16.1
140.0 141.3 6.7 7.9 8.3 9.6 10.3 11.9 12.7 14.7 15.7 18.1
160.0 161.5 7.7 8.9 9.5 11.0 11.8 13.6 14.6 16.8 17.9 21.4
180.0 181.7 8.6 9.9 10.7 12.4 13.3 15.3 16.4 19.6 20.1 24.1
200.0 201.8 9.6 11.1 11.9 13.7 14.7 17.0 18.2 21.8 22.4 26.8
225.0 227.1 10.8 12.5 13.4 15.5 16.6 19.8 20.5 24.5 25.2 30.2
250.0 252.3 11.9 13.7 14.8 17.1 18.4 22.0 22.7 27.2 27.9 33.4
280.0 282.6 13.4 15.5 16.6 19.9 20.6 24.7 25.4 30.4 31.3 37.5
315.0 317.9 15.0 17.3 18.7 22.4 23.2 27.8 28.6 34.3 35.2 42.2
355.0 358.2 16.9 20.2 21.1 25.3 26.1 31.3 32.2 38.6 39.7 47.6
400.0 403.6 19.9 22.9 23.7 28.4 29.4 35.2 36.3 43.5 44.7 53.6
450 454.1 21.5 25.7 26.7 32.0 33.1 39.7 40.9 49.0 50.3 60.2
500 504.5 23.9 28.6 29.7 35.6 36.8 44.1 45.4 53.4 55.8 65.7
560 565.0 26.7 32.0 33.2 39.8 41.2 49.4 50.8 60.7 - -
630 635.7 30.0 35.9 37.4 44.8 46.3 55.5 57.2 67.1 - -
710 716.4 33.9 40.6 42.1 50.5 52.2 62.1 - - - -
800 807.2 38.1 45.7 47.4 56.8 58.8 68.7 - - - -
900 908.1 42.9 51.4 53.3 63.2 - - - - - -
1000 1009 47.7 57.2 59.3 69.2 - - - - - -
1200 1210 57.2 67.1 - - - - - - - -
1400 1410 - - - - - - - - - -
1600 1610 - - - - - - - - - -
Note : Pressure Rating in : Kg/cm²

Material Grade PE 100
OD PN 10 PN 12.5 PN 16
Wall Thickness Wall Thickness Wall Thickness
Min. Max. Min. Max. Min. Max. Min. Max.
32.0 32.3 - - - - 3.0 3.5
40.0 40.4 - - - - 3.7 4.3
50.0 50.5 - - - - 4.6 5.3
63.0 63.6 - - 4.7 5.5 5.8 6.7
75.0 75.7 4.5 5.2 5.6 6.5 6.8 7.9
90.0 90.9 5.4 6.3 6.7 7.8 8.2 9.5
110.0 111.0 6.6 7.6 8.1 9.4 10.0 11.5
125.0 126.2 7.4 8.6 9.2 10.6 11.4 13.2
140.0 141.3 8.3 9.6 10.3 11.9 12.7 14.7
160.0 161.5 9.5 11.0 11.8 13.6 14.6 16.8
180.0 181.7 10.7 12.4 13.9 15.3 16.4 19.6
200.0 201.8 11.9 13.7 14.7 17.0 18.2 21.8
225.0 227.1 13.4 15.5 16.6 19.9 20.5 24.5
250.0 252.3 14.8 17.1 18.4 22.0 22.7 27.2
280.0 282.6 16.6 19.9 20.6 24.7 25.4 30.4
315.0 317.9 18.7 22.4 23.2 27.8 28.6 34.3
355.0 358.2 21.1 25.3 26.1 31.3 32.2 38.6
400.0 403.6 23.7 28.4 29.4 35.2 36.3 43.5
450.0 454.1 26.7 32.0 33.1 39.7 40.9 49.0
500.0 504.5 29.7 35.6 36.8 44.1 45.4 54.4
560.0 565.0 33.2 39.8 41.2 49.4 50.8 60.7
630.0 635.7 37.4 44.8 46.2 55.4 57.2 67.1
710.0 716.4 42.1 50.5 52.2 62.1 - -
800.0 807.2 47.4 56.8 58.8 68.7 - -
900.0 908.1 53.3 63.2 - - - -
1000.0 1009.0 59.3 69.2 - - - -
Pressure Rating in : Kg/cm²

PE Pipe as per ISO:4984:95 (With Amendment)
Material Grade PE 63 All dimension are in mm
OD PN 2.5 PN 4 PN 6 PN 8 PN 10 PN 12.5 PN 16
Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
20.0 20.3 - - - - - - - - 2.3 2.8 2.8 3.3 3.4 4.0
25.0 25.3 - - - - - - 2.3 2.8 2.8 3.3 3.4 4.0 4.2 4.9
32.0 32.3 - - - - 2.3 2.8 3.0 3.5 3.6 4.2 4.4 5.1 5.4 6.2
40.0 40.4 - - 2.0 2.4 2.8 3.3 3.7 4.3 4.5 5.2 5.5 6.3 6.7 7.6
50.0 50.5 - - 2.4 2.9 3.5 4.1 4.6 5.3 5.6 6.4 6.8 7.7 8.4 9.5
63.0 63.6 2.0 2.4 3.0 3.5 4.4 5.1 5.8 6.6 7.0 7.9 8.6 9.7 10.5 11.8
75.0 75.7 2.3 2.8 3.6 4.2 5.3 6.1 6.9 7.8 8.4 9.5 10.2 11.5 12.5 14.0
90.0 90.9 2.8 3.3 4.3 5.0 6.3 7.2 8.2 9.3 10.0 11.2 12.2 13.7 15.0 16.7
110.0 111.0 3.4 4.0 5.3 6.1 7.7 8.7 10.0 11.2 12.3 13.8 14.9 16.6 18.4 20.5
125.0 126.2 3.8 4.4 6.0 6.8 8.8 9.9 11.4 12.8 13.9 15.5 16.9 18.8 20.9 23.2
140.0 141.3 4.3 5.0 6.7 7.6 9.8 11.0 12.8 14.3 15.6 17.4 19.0 21.1 23.4 26.0
160.0 161.5 4.9 5.6 7.7 8.7 11.2 12.6 14.6 16.3 17.8 19.8 21.7 24.1 26.7 29.6
180.0 181.7 5.5 6.3 8.6 9.7 12.6 14.1 16.4 18.3 20.0 22.2 24.4 27.1 30.0 33.2
200.0 201.8 6.1 7.0 9.6 10.8 14.0 15.6 18.2 20.3 22.3 24.8 27.1 30.1 33.4 37.0
225.0 227.1 6.9 7.8 10.8 12.1 15.7 17.5 20.5 22.8 25.0 27.7 30.5 33.8 37.5 41.5
250.0 252.3 7.6 8.6 12.0 13.4 17.5 19.5 22.8 25.3 27.8 30.8 33.8 37.4 41.7 46.1
280.0 282.6 8.5 9.6 13.4 15.0 19.6 21.8 25.5 28.3 31.2 34.6 37.9 41.9 46.7 51.6
315.0 317.9 9.6 10.8 15.0 16.7 22.0 24.4 28.7 31.8 35.0 38.7 42.6 47.1 52.5 58.0
355.0 358.2 10.8 12.1 17.0 18.9 24.8 27.5 32.3 35.8 39.5 43.7 48.0 53.0 59.2 65.4
400.0 403.6 12.2 14.3 19.1 22.2 28.0 32.4 36.4 42.8 44.5 51.4 54.1 62.5 - -
450.0 454.1 13.7 16.0 21.5 25.0 31.4 36.4 41.1 47.4 50.0 57.7 - - - -
500.0 504.5 15.2 17.7 23.9 27.7 34.9 40.4 45.5 52.6 55.6 64.2 - - - -
560.0 565.0 17.0 19.8 26.7 31.0 39.1 45.2 51.0 58.9 - - - - - -
630.0 635.7 19.1 22.2 30.0 34.7 44.0 50.8 57.3 66.1 - - - - - -
710.0 716.4 21.6 25.1 33.9 39.2 49.6 57.3 - - - - - - - -
800.0 807.2 24.3 28.2 38.1 44.1 55.9 64.5 - - - - - - - -
900.0 908.1 27.3 31.6 42.9 49.6 - - - - - - - - - -
1000.0 1009.0 30.4 35.2 47.7 55.1 - - - - - - - - - -
Note : Pressure Rating in : Kg/cm²

Material Grade PE 80 All dimension are in mm
OD PN 6 PN 8 PN 10 PN 12.5 PN 16
Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
20.0 20.3 - - - - - - 2.3 2.8 2.8 3.3
25.0 25.3 - - - - 2.3 2.8 2.8 3.3 3.5 4.1
32.0 32.3 - - 2.4 2.9 3.0 3.5 3.6 4.2 4.5 5.2
40.0 40.4 2.3 2.8 3.0 3.5 3.7 4.3 4.5 5.2 5.6 6.4
50.0 50.5 2.9 3.4 3.8 4.4 4.6 5.3 5.6 6.4 6.9 7.8
63.0 63.6 3.6 4.2 4.7 5.4 5.8 6.6 7.0 7.9 8.7 9.8
75.0 75.7 4.3 5.0 5.6 6.4 6.9 7.8 8.4 9.5 10.4 11.7
90.0 90.9 5.1 5.9 6.7 7.6 8.2 9.3 10.0 11.2 12.5 14.0
110.0 111.0 6.3 7.2 8.2 9.3 10.0 11.2 12.3 13.8 15.2 17.0
125.0 126.2 7.1 8.1 9.3 10.5 11.4 12.8 13.9 15.5 17.3 19.3
140.0 141.3 8.0 9.0 10.4 11.7 12.8 14.3 15.6 17.4 19.4 21.6
160.0 161.5 9.1 10.3 11.9 13.3 14.6 16.3 17.8 19.8 22.1 24.6
180.0 181.7 10.2 11.5 13.4 15.0 16.4 18.3 20.0 22.2 24.9 27.6
200.0 201.8 11.4 12.8 14.9 16.6 18.2 20.3 22.3 24.8 27.6 30.6
225.0 227.1 12.8 14.3 16.7 18.6 20.5 22.8 25.0 27.7 31.1 34.5
250.0 252.3 14.2 15.9 18.6 20.7 22.8 25.3 27.8 30.8 34.5 38.2
280.0 282.6 15.9 17.7 20.8 23.1 25.5 28.3 31.2 34.6 38.7 42.8
315.0 317.9 17.9 19.9 23.4 26.0 28.7 31.8 35.0 38.7 43.5 48.1
355.0 358.2 20.1 22.4 26.3 29.2 32.3 35.8 39.5 43.7 49.0 54.1
400.0 403.6 22.7 26.4 29.7 34.4 36.4 42.1 44.5 51.4 55.2 63.7
450.0 454.1 25.5 29.6 33.4 38.7 41.0 47.7 50.0 57.7 - -
500.0 504.5 28.4 32.9 37.1 42.9 45.5 52.6 55.6 64.2 - -
560.0 565.0 31.7 36.7 41.5 48.0 51.0 58.9 - - - -
630.0 635.7 35.7 41.3 46.7 54.0 57.3 66.1 - - - -
710.0 716.4 40.2 46.5 52.6 60.7 - - - - - -
800.0 807.2 45.3 52.3 - - - - - - - -
900.0 908.1 51.0 58.9 - - - - - - - -
1000.0 1009.0 56.7 65.5 - - - - - - - -
Note : Pressure Rating in : Kg/cm²

Material Grade PE 100

 All dimension are in mm
OD PN 6 PN 8 PN 10 PN 12.5 PN 16
Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
20.0 20.3 - - - - - - - - 2.3 2.8
25.0 25.3 - - - - - - 2.3 2.8 2.9 3.4
32.0 32.3 - - - - 2.4 2.9 2.9 3.4 3.7 4.3
40.0 40.4 - - 2.4 2.9 3.0 3.5 3.7 4.3 4.6 5.3
50.0 50.5 2.3 2.8 3.0 3.5 3.7 4.3 4.6 5.3 5.7 6.5
63.0 63.6 2.9 3.4 3.8 4.4 4.7 5.4 5.7 6.5 7.1 8.1
75.0 75.7 3.5 4.1 4.5 5.2 5.6 6.4 6.8 7.7 8.5 9.6
90.0 90.9 4.1 4.8 5.4 6.2 6.7 7.6 8.2 9.3 10.2 11.5
110.0 111.0 5.0 5.7 6.6 7.5 8.1 9.2 10.0 11.2 12.4 13.9
125.0 126.2 5.7 6.5 7.5 8.5 9.2 10.4 11.3 12.7 14.1 15.8
140.0 141.3 6.4 7.3 8.4 9.5 10.3 11.6 12.7 14.2 15.8 17.6
160.0 161.5 7.3 8.3 9.6 10.8 11.8 13.2 14.5 16.2 18.1 20.2
180.0 181.7 8.2 9.3 10.8 12.1 13.3 14.9 16.3 18.2 20.3 22.6
200.0 201.8 9.1 10.3 12.0 13.4 14.8 16.5 18.1 20.2 22.6 25.1
225.0 227.1 10.3 11.6 13.5 15.1 16.6 18.5 20.4 22.7 25.4 28.2
250.0 252.3 11.4 12.8 15.0 16.7 18.4 20.5 22.6 25.1 28.2 31.3
280.0 282.6 12.8 14.3 16.8 18.7 20.6 22.9 25.3 28.1 31.6 35.0
315.0 317.9 14.4 16.1 18.9 21.0 23.2 25.8 28.5 31.6 35.5 39.3
355.0 358.2 16.2 18.1 21.2 23.6 26.2 29.1 32.1 35.6 40.0 44.2
400.0 403.6 18.2 21.2 23.9 27.7 29.5 34.2 36.2 41.9 45.1 52.1
450.0 454.1 20.5 23.8 26.9 31.2 33.1 38.3 40.7 47.7 50.8 58.7
500.0 504.5 22.8 26.5 29.9 34.6 36.8 42.6 45.2 52.2 56.4 65.1
560.0 565.0 25.5 29.6 33.5 38.8 41.2 47.6 50.6 58.4 - -
630.0 635.7 28.7 33.3 37.7 43.6 46.4 53.6 56.9 65.7 - -
710.0 716.4 32.3 37.4 42.4 49.0 52.3 60.4 - - - -
800.0 807.2 36.4 42.1 47.8 55.2 58.9 68.0 - - - -
900.0 908.1 41.0 47.4 53.8 62.1 - - - - - -
1000.0 1009.0 45.5 52.6 - - - - - - - -
Note : Pressure Rating in : Kg/cm²


PE Pipe as per DIN:8074-99
OD Pipe
Series
25 		Pipe
Series
20 		Pipe
Series
16 		Pipe
Series
12.5 		Pipe
Series
10.5 		Pipe
Series
10 		Pipe
Series
8.3 		Pipe
Series
8.0 		Pipe
Series
6.3 		Pipe
Series
5.0 		Pipe
Series
4.0 		Pipe
Series
3.2 		Pipe
Series
2.5		 Pipe
Series
2.0
Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
10 10.3 - - - - - - - - - - - - - - - - - - - - - - - - 1.8 2.2 2.0 2.4
12 12.3 - - - - - - - - - - - - - - - - - - - - - - 1.8 2.2 2.0 2.4 2.4 2.9
16 16.3 - - - - - - - - - - - - - - - - - - - - 1.8 2.2 2.2 2.7 2.7 3.2 3.3 3.9
20 20.3 - - - - - - - - - - - - - - - - 1.8 2.2 1.9 2.3 2.3 2.8 2.8 3.3 3.4 4.0 4.1 4.8
25 25.3 - - - - - - - - - - - - - - 1.8 2.2 1.9 2.3 2.3 2.8 2.8 3.3 3.5 4.1 4.2 4.9 5.1 5.9
32 32.3 - - - - - - - - - - - - 1.8 2.2 1.9 2.3 2.4 2.9 2.9 3.4 3.6 4.2 4.4 5.1 5.4 6.2 6.5 7.4
40 40.4 - - - - - - 1.8 2.2 1.9 2.3 1.9 2.3 2.3 2.8 2.4 2.9 3.0 3.5 3.7 4.3 4.5 5.2 5.5 6.3 6.7 7.6 8.1 9.2
50 50.5 - - - - 1.8 2.2 2.0 2.4 2.3 2.8 2.4 2.9 2.9 3.4 3.0 3.0 3.7 4.3 4.6 5.3 5.6 6.4 6.9 7.8 8.3 9.4 10.1 11.4
63 63.6 - - 1.8 2.2 2.0 2.4 2.5 3.0 2.9 3.4 3.0 3.5 3.6 4.1 3.8 4.4 4.7 5.4 5.8 6.6 7.1 8.1 8.6 9.7 10.5 11.8 12.7 14.2
75 75.7 1.8 2.2 1.9 2.3 2.3 2.8 2.9 3.4 3.5 4.1 3.6 4.2 4.3 5.0 4.5 5.2 5.6 6.4 6.8 7.7 8.4 9.5 10.3 11.6 12.5 14.0 15.1 16.9
90 90.9 1.8 2.2 2.2 2.7 2.8 3.3 3.5 4.1 4.1 4.8 4.3 5.0 5.1 5.9 5.4 6.2 6.7 7.6 8.2 9.3 10.1 11.4 12.3 13.8 15.0 16.7 18.1 20.2
110 111.0 2.2 2.7 2.7 3.2 3.4 4.0 4.2 4.9 5.0 5.7 5.3 6.1 6.3 7.2 6.6 7.5 8.1 9.2 10.0 11.2 12.3 13.8 15.1 16.9 18.3 20.4 22.1 24.6
125 126.2 2.5 3.0 3.1 3.7 3.9 4.5 4.8 5.5 5.7 6.5 6.0 6.8 7.1 8.1 7.4 8.4 9.2 10.4 11.4 12.8 14.0 15.6 17.1 19.1 20.8 23.1 25.1 27.9
140 141.3 2.8 3.3 3.5 4.1 4.3 5.0 5.4 6.2 6.4 7.3 6.7 7.6 8.0 9.0 8.3 9.4 10.3 11.6 12.7 14.2 15.7 17.5 19.2 21.4 23.3 25.9 28.1 31.2
160 161.5 3.2 3.8 4.0 4.6 4.9 5.6 6.2 7.1 7.3 8.3 7.7 8.7 9.1 10.3 9.5 10.7 11.8 13.2 14.6 16.3 17.9 19.9 21.9 24.3 26.6 29.5 32.1 35.6
180 181.7 3.6 4.2 4.4 5.1 5.5 6.3 6.9 7.8 8.2 9.3 8.6 9.7 10.2 11.5 10.7 12.0 13.3 14.9 16.4 18.3 20.1 22.4 24.6 27.3 29.9 33.1 36.1 40.0
200 201.8 3.9 4.5 4.9 5.6 6.2 7.1 7.7 8.7 9.1 10.3 9.6 10.8 11.4 12.8 11.9 13.3 14.7 16.4 18.2 20.3 22.4 24.9 27.4 30.4 33.2 36.8 40.1 44.4
225 227.1 4.4 5.1 5.5 6.3 6.9 7.8 8.6 9.7 10.3 11.6 10.8 12.1 12.8 14.3 13.4 15.0 16.6 18.5 20.5 22.8 25.2 28.0 30.8 34.1 37.4 41.4 45.1 49.9
250 252.3 4.9 5.6 6.2 7.1 7.7 8.7 9.6 10.8 11.4 12.8 11.9 13.3 14.2 15.9 14.8 16.5 18.4 20.5 22.7 25.2 27.9 30.9 34.2 37.9 41.6 46.0 50.1 55.4
280 282.6 5.5 6.3 6.9 7.8 8.6 9.7 10.7 12.0 12.8 14.3 13.4 15.0 15.9 17.7 16.6 18.5 20.6 22.9 25.4 28.2 31.3 34.7 38.3 42.4 46.5 51.4 56.2 62.1
315 317.9 6.2 7.1 7.7 8.7 9.7 10.9 12.1 13.6 14.4 16.1 15.0 16.7 17.9 19.9 18.7 20.8 23.2 25.8 28.6 31.7 35.2 39.1 43.1 47.7 52.3 57.8 63.2 69.8
355 358.2 7.0 7.9 8.7 9.8 10.9 12.2 13.6 15.2 16.2 18.1 16.9 18.8 20.1 22.4 21.1 23.5 26.1 29.0 32.2 35.7 39.7 43.9 48.5 53.6 59.0 65.1 - -
400 403.6 7.9 8.9 9.8 11.0 12.3 13.8 15.3 17.1 18.2 20.3 19.1 21.3 22.7 25.2 23.7 26.3 29.4 32.6 36.3 40.2 44.7 49.4 54.7 60.4 66.5 73.4 - -
450 453.8 8.8 9.9 11.0 12.3 13.8 15.4 17.2 19.2 20.5 22.8 21.5 23.9 25.5 28.3 26.7 29.6 33.1 36.7 40.9 45.2 50.3 55.6 61.5 67.9 - - - -
500 504.0 9.8 11.0 12.3 13.8 15.3 17.1 19.1 21.3 22.8 25.3 23.9 26.5 28.4 31.5 29.7 32.9 36.8 40.7 45.4 50.2 55.8 61.6 68.3 75.4 - - - -
560 564.3 11.0 12.3 13.7 15.3 17.2 19.2 21.4 23.8 25.5 28.3 26.7 29.6 31.7 35.1 33.2 36.8 41.2 45.6 50.8 56.1 62.5 69.0 - - - - - -
630 634.6 12.3 13.7 15.4 17.2 19.3 21.5 24.1 26.8 28.7 31.8 30.0 33.2 35.7 39.5 37.4 41.4 46.3 51.2 57.2 63.2 - - - - - - - -
710 714.9 13.9 15.5 17.4 19.4 21.8 24.2 27.2 30.2 32.3 35.8 33.9 37.5 40.2 44.5 42.1 46.6 52.2 57.7 64.5 71.2 - - - - - - - -
800 805.0 15.7 17.5 19.6 21.8 24.5 27.2 30.6 33.9 36.4 40.3 38.1 42.2 45.3 50.1 47.4 52.4 58.8 64.9 - - - - - - - - - -
900 905.0 17.6 19.6 22.0 24.4 27.6 30.6 34.4 38.1 41.0 45.3 42.9 47.4 51.0 56.3 53.3 58.9 66.1 73.0 - - - - - - - - - -
1000 1005.0 19.6 21.8 24.5 27.2 30.6 33.9 38.2 42.3 45.5 50.3 47.7 52.7 56.7 62.6 59.3 65.5 - - - - - - - - - - - -
1200 1208.5 23.5 26.1 29.4 32.6 36.7 40.6 45.9 50.7 54.6 60.3 57.2 63.2 68.0 75.0 - - - - - - - - - - - - - -
1400 1408.5 27.4 30.4 34.4 38.1 42.9 47.4 53.5 59.1 63.7 70.3 66.7 73.6 - - - - - - - - - - - - - - - -
1600 1608.5 31.3 34.7 39.2 43.4 49.0 48.0 61.2 67.6 - - - - - - - - - - - - - - - - - - - -
Note : Pressure Rating in : Kg/cm²


PE Pipe as per ASTM D 3035 (PE 3408)
Nom. Dia. Outside Dia. Minimum Wall Thickness in mm
inch mm mm DR32.5 DR26 DR21 DR17 DR15.5 DR13.5 DR11 DR9.3 DR9 DR7
½" 21 21.34 1.57 1.57 1.57 1.57 1.57 1.57 1.93 2.29 2.36 3.05
¾" 27 26.70 1.57 1.57 1.57 1.57 1.73 1.98 2.41 2.87 2.97 3.81
1" 33 33.40 1.57 1.57 1.60 1.96 2.13 2.46 3.05 3.58 3.71 4.78
1¼" 42 42.20 1.57 1.63 2.01 2.49 2.72 3.12 3.84 4.52 4.67 6.02
1½" 48 48.30 1.57 1.85 2.29 2.84 3.12 3.58 4.39 5.18 5.36 6.88
2" 60 60.30 1.85 2.31 2.87 3.56 3.89 4.47 5.49 6.48 6.71 8.61
3" 89 88.90 2.74 3.43 4.24 5.23 5.74 6.58 8.08 9.55 9.88 12.70
4" 114 114.30 3.51 4.39 5.44 6.73 7.37 8.46 10.39 12.29 12.70 16.33
5" 141 141.30 4.34 5.44 6.73 8.31 9.12 10.46 12.85 15.19 15.70 20.19
6" 168 168.28 5.18 6.48 8.00 9.91 10.85 12.47 15.29 18.08 18.69 24.03
8" 219 219.08 6.73 8.43 10.44 12.88 14.12 16.23 19.91 23.55 24.33 31.29
10" 273 273.05 8.41 10.49 13.00 16.05 17.63 20.22 24.82 29.36 30.33 39.01
12" 324 323.85 9.96 12.45 15.42 19.05 20.90 23.98 29.44 34.82 35.99 46.25
14" 357 355.60 10.95 13.67 16.94 20.93 22.94 26.34 32.33 38.23 39.52 50.80
16" 408 406.40 12.50 15.62 19.35 23.90 26.21 30.10 36.96 43.69 45.16 58.06
18" 459 457.20 14.07 17.58 21.77 26.90 29.49 33.86 41.55 49.15 50.80 65.30
20" 510 508.00 15.62 19.53 24.18 29.87 32.77 37.62 46.18 54.64 56.44 72.57
22" 561 558.80 16.94 21.49 26.62 32.87 36.04 41.40 50.80 60.10 62.08 79.83
24" 612 609.60 18.75 23.44 29.03 35.86 39.32 45.16 55.42 65.56 67.74 87.10

Dimensions of HDPE Sprinkler Pipes of Material Grades PE63 IS:14151-1994

Nominal Dia Outside Dia Nominal
Tolerance on
Outside Dia.		 Ovality Class 1
(0.25 MPa)		 Class 2
(0.32 MPa)		 Class 3
(0.4 MPa)		 Class 4
(0.6 MPa)
mm Min Max Min Max Min Max Min Max
40 40.0 +0.4 1.4 - - - - - - 2.3 2.8
50 50.0 +0.5 1.4 - - - - 2.0 2.4 2.9 3.4
63 63.0 +0.6 1.5 - - 2.0 2.4 2.5 2.9 3.8 4.4
75 75.0 +0.7 1.6 2.0 2.4 2.5 2.9 3.0 3.4 4.5 5.2
90 90.0 +0.8 1.8 2.2 2.6 2.9 3.4 3.5 4.1 5.3 6.1
110 110.0 +1.0 2.2 2.7 3.2 3.4 3.9 4.2 4.8 6.5 7.4
125 125.0 +1.2 2.5 3.1 3.6 3.8 4.5 4.8 5.5 7.4 8.3
140 140.0 +1.3 2.8 3.5 4.1 4.3 5.0 5.4 6.1 8.3 9.3
160 160.0 +1.5 3.2 3.9 4.5 4.9 5.6 6.2 7.0 9.4 10.6
180 180.0 +1.7 3.6 4.4 5.0 5.5 6.3 6.9 7.8 10.6 11.9
200 200.0 +1.8 4.0 4.9 5.6 6.1 7.0 7.7 8.7 11.8 13.2

Designation of Material
Designation of Material MRS at 50 years and 20 ºC
MPa 		Maximum allowable hydrostatic design stress.
MPass
PE100 10 8.0
PE80 8 6.3

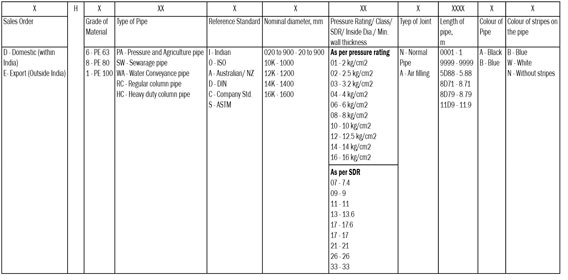

Ordering Specifications

Example: HP080075060BIS - This represents Polyethylene Pipe of 75 mm nominal outside diameter
having 6.0 kg/cm² pressure rating as per IS:4984 with material grade PE 80

Related Links :

PE Hand Moulded Fittings

HDPE Pipes Jointing Connections

Go to related product category: Pipes

Click here for more details

More Crop Per Drop®

Jain Pipe and Pipe Fittings
PVC Pressure Pipes (Solvent Welded) / Quick Fix™ PVC Pipe (Rubber Ring Joint Pipes)
Jain PVC Cable Duct
Jain PVC Well Casing and Screen Pipe
Jain Sure-Loc® Well Casing and Screen Pipe
Jain Sure-Loc® Column Pipe
HDPE Pipes
Quick-Connect® PE Pipes
HDPE Sure-Loc® Pressure Pipes and Pipe Fittings
Jain PE Duct
Polyethylene Gas Piping System
SWR Pipes
SWR Fittings
SWR Installation Procedure
Jain Valves
Plastic Control Valves and Safety Valves
Design-Technical Information
Units and Conversions
Design Data
Container Loading Details
Chemical Resistance Table
Warranty
Trade Mark
Certifications
Sprinkler Irrigation Systems
Lawn & Garden Pop-ups
Overhead Sprinkler
Filtration System
Sand Separator
Screen filter
Media Filters & Manifolds
Backwash Controller
Fertigation Systems & Chemigation Equipments
Jain Fertilizer Tank
Jain Fertilizer Injector
Ventury Injector
J-Injector Pump
Manifold Fertigation
Catalogues, Papers and Manuals (PDF files)
Paper presented on Development of Micro Irrigation in India
Irrigation Product Catalogue
J Turbo Aqura
Maintenance Manual on Irrigation System
Micro Watershed to Micro Irrigation
B-Sure™ SWR Piping System
Improved Agro techniques for Sugarcane Under Drip System
[English] [Marathi] [Kannad]
Drawbacks in Conventional Irrigation Methods
Agricultural services offered by JAINS

Top

© Jain Irrigation Systems Ltd.
Site enabled by : Jainart    Best viewed in 800 × 600 Resolution with IE 4.0 or Firefox 1.0.5 or higher
